USB 2.0 <=> CS High Isolated Industrie Konverter Modul (Prod. Nr. #270)
für Hutschienen Montage - DIN Rail
Merkmale:
Extrem EMV unempfindlich !
Extrem robust ! Für Industrie designt ! Bis 500 Kbps schnell !
Außenabmessungen (mm) 90 x H 75 x B 23 Chip FT232RL !
Aktiv oder Passiv, Halbduplex ( 2- Leiter ) mit vollisolierter COM- Schnittstelle !
Geringe Stromverbrauch ! High-Speed Digital Isolator (keine Optokoppler) !
CS (TTY, 20 mA) Driver:
Current Loop 20 mA +/-2 mA
Halfduplex aktive or passve
Local Echo ON/OFF funktion
3 x LED (RX, TX, Power)
Thermal Shutdown for Driver-Overload Protection
USB2.0 ESD Schutz:
2 data lines protection, Protects VBUS
Enhanced ESD protection: IEC61000-4-2 level 4:
15kV (air discharge)
8kV (contact discharge)
ESD protection of VBUS
Fast response time
Consistant D+/D- signal balance
Best capacitance matching tolerance I/O to GND of 0.04pF
Compliance with USB2.0 requirement (<1pF)
Galvanischer Trennung:
High common-mode transient immunity: >25 kV/µs
Safety and regulatory approvals
UL recognition: 5000 V rms for 1 minute per UL 1577
CSA Component Acceptance Notice #5A
IEC 60950-1: 600 V rms (reinforced)
IEC 60601-1: 250 V rms (reinforced)
VDE certificate of conformity
DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
VIORM = 846 V peak
USB2.0
The FT232RL is FTDI’s 5th generation of USB devices.
Drivers for all OS available
Referenzen:
Mit einem Feritt auf der USB Zuleitung - 99,9 % Sicherheit gegen USB-Absturz
Test bei 1 MBaud ergab (alte FTDI Chip in eckigen Klammer):
04.09.2009 19:30:10: Did 10000 requests.
04.09.2009 19:30:10: Min request: 1,00 [~2 ms]
04.09.2009 19:30:10: Max request (15 ms): 4,00 [~12ms]
04.09.2009 19:30:10: Avg request (7 ms): 2,21 [~5ms]
04.09.2009 19:30:10: Stats:
04.09.2009 19:30:10: Retries send/receive: 0/0
|
|

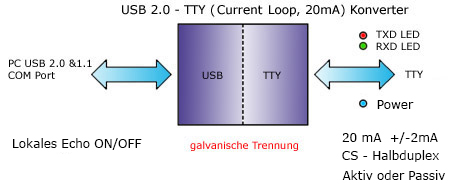

Blockschaltbild
Konverter Bilder
Technische Daten: USB2.0 <=> CS High Isolated Industrie Konverter Modul
Produkt:
|
USB2.0 <=> CS High Isolated Industrie Konverter Modul
|
#270
|
Driver:
|
Driver & Doku
|
|
Installation:
|
Plug & Play
|
|
USB Kabellänge:
|
0,5 .. 5,0 m
|
|
USB-Interface:
|
1 x virtueller COM-Port
|
|
Anschluss 1:
|
USB 2.0 (1.1)
|
|
Anschluss 1 Belegung:
|
Mini USB 5 pol.
Pin 1 - Vcc
Pin 2 - D-
Pin 3 - D+
Pin 4 - GND
Pin 5 - GND
|
|
Anschluss 1 ESD Schutz:
|
2 data lines protection, Protects VBUS
Enhanced ESD protection: IEC61000-4-2 level 4:
15kV (air discharge)
8kV (contact discharge)
ESD protection of VBUS
Fast response time
Consistant D+/D- signal balance
Best capacitance matching tolerance I/O to GND of 0.04pF
Compliance with USB2.0 requirement (<1pF)
|
|
Anschluss 2:
|
CS (TTY, 20 mA) 6 Klemmen
|
|
Anschluss 2
Belegung:
|
Klemme K +20 mA
Klemme L +TX/RX
Klemme J -TX/RX
Klemme G GND
Klemme B Echo OFF - Brücke von B auf C
Klemme C Echo ON - ohne Brücke von B auf C
|
|

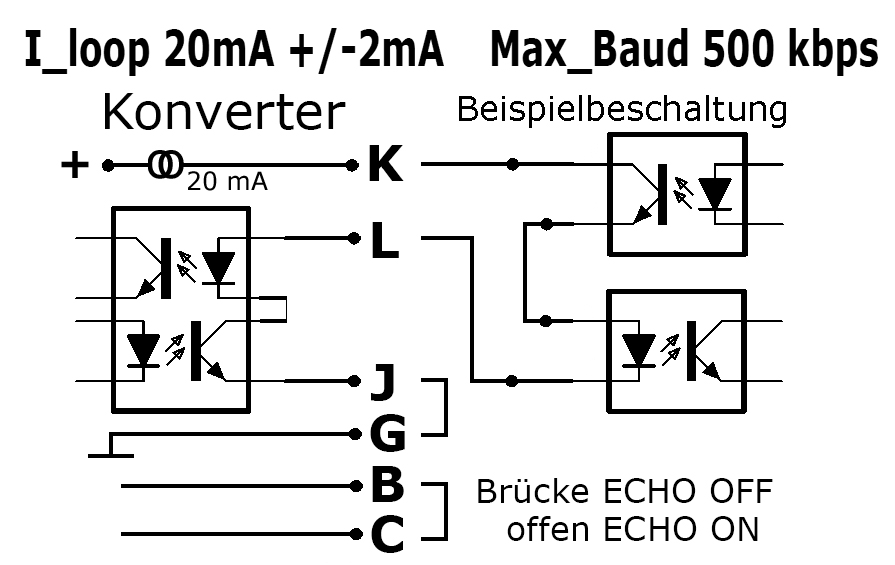

Beschaltung:
|
|
|
Lokales Echo:
|
Abschaltbar über Brücke von Klemme B auf Klemme C
|
|
Galvanischer Trennung:
|
High common-mode transient immunity: >25 kV/µs
Safety and regulatory approvals
UL recognition: 5000 V rms for 1 minute per UL 1577
CSA Component Acceptance Notice #5A
IEC 60950-1: 600 V rms (reinforced)
IEC 60601-1: 250 V rms (reinforced)
VDE certificate of conformity
DIN V VDE V 0884-10 (VDE V 0884-10):2006-12
VIORM = 846 V peak
|
|
TX/RX Umschaltung:
|
Automatisch
|
|
Übertragungskanäle:
|
Halbduplex 2-Leiter
|
|
Spannungsversorgung:
|
+5V über USB ca. 180 mA
|
|
Übertragungsraten:
|
183 bps bis 500 Kbps
|
|
Zustandsanzeigen:
|
LED grün - RX aktiv
LED rot - TX aktiv
LED blau - Power On
|
|
Betriebstemperatur:
|
-20..+80°C
|
|
Treiber Software:
|
Windows 10
Windows 8
Windows 7
Windows Vista x64
Windows XP x64
Windows Server 2003 x64
Windows Vista
Windows XP
Windows Server 2003
Windows 2000
Windows ME
Windows 98
Linux
Mac OS X
Mac OS 9
Mac OS 8
Windows CE.NET (Version 4.2 and greater)
Android
|
|
|
|
|
|
|
|
|
|
|
|
